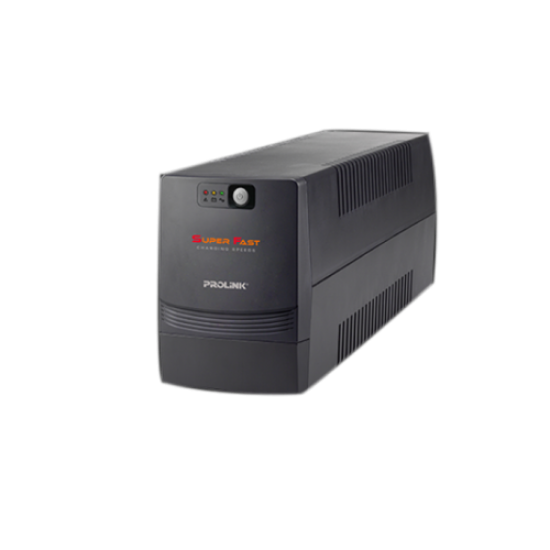

PROLINK PRO1501SFCU-4U 1500VA UPS

GENERAL

– Capacity: 1500VA

– Dimension (mm): 320 x 130 x 182 (D x W x H)

– Weight (kg): 10.4

INPUT

– Nominal Voltage: 230VAC

– Voltage Range: 140 – 300 VAC ± 5%

– Nominal Frequency: 50 or 60Hz (Auto sensing)

OUTPUT

– Voltage Regulation: ± 10%

– Frequency: 50 or 60Hz ± 1Hz

– Transfer Time (typical): 2 – 6ms

– Waveform: Simulated Sinewave

BATTERY

– Number of Battery: 12 V/10 Ah x 2

– Recharge Time (typical): 2-4 hours recover to 90% capacity

ALARM & INDICATORS

– LED Display: AC Mode – Green Lighting, Battery Mode – Yellow Flashing every 10 seconds, Overload – Red Flashing every second, Fault – Red Lighting

– Sounding: Battery Mode – Sounding every 10 seconds, Low Battery – Sounding every second, Overload – Sounding every 0.5 second, Battery Replacement Alarm – Sounding every 2 seconds, Fault – Continously sounding
