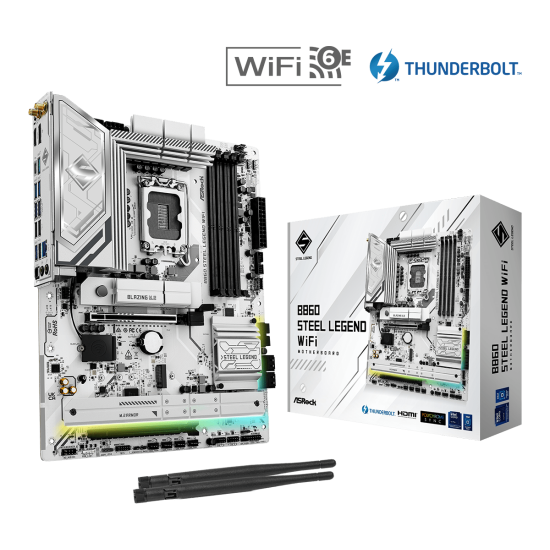

ASRock B860 Steel Legend WiFi

Supports Intel® Core™ Ultra Processors (Series 2)

14+1+1+1+1 Phase Power Design, 80A Dr.MOS for VCore+GT+SA

4 x DDR5 DIMMs

Supports Dual Channel, up to 8666+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C

Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4)

2 Hyper M.2 (PCIe Gen4x4)

1 M.2 (PCIe Gen4x2)

4 SATA3

1 Thunderbolt™ 4 Type-C (Rear)

1 USB 3.2 Gen2x2 Type-C (Front)

2 USB 3.2 Gen2 (Rear)

8 USB 3.2 Gen1 (4 Rear, 4 Front)

7 USB 2.0 (3 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe Wi-Fi 6E + Bluetooth

Supports Lite Release Design,

Toolless Multi-Layer M.2 Heatsink
