- Stock: In Stock
- Brand: Cougar
- Model: 385KA10.0001
- SKU: 385KA10.0001
- EAN: 385KA10.0001

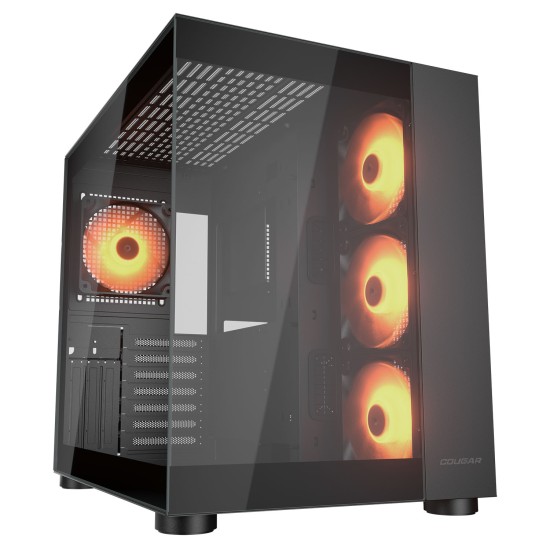

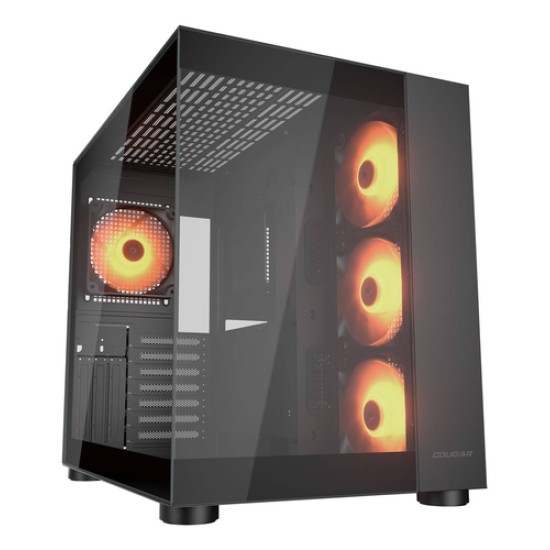

The dual-chamber design of the FV150 RGB aligns aesthetics with functionality: the glass panels of one chamber are perfect for a clean view of your build while cables, storage and PSU are discreetly hidden in a second chamber. A bottom fan bracket lets you secure fans to the bracket prior to installation, allowing for a completely stress-free setup. GPU and ATX motherboard compatibility offers unlimited flexibility for multiple build configurations. Dual chamber design lets you show off your build while hiding cables, storage drives, and PSU. Supports up to 400mm GPUs and vertical GPU orientation. Supports Mini-ITX, Micro-ATX, ATX motherboards. Engineered bottom fan bracket allows you to attach fans prior to installation.
Specifications
Motherboard Support : Mini ITX / Micro ATX / ATX
Dimensions (WxHxD) : 300 x 400 x 415 (mm)
I/O Panel : USB 3.2 Gen 2 Type-C x 1, USB-A 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button
3.5" Drive Bay : 2
2.5" Drive Bay : 1+1 (converted from 3.5" drive bays)
Expansion Slots : 7+3
Vertical GPU Support : Yes
Cooling Fan Support : Top 120mm x 3 / 140mm x 2 - M/B Side 120mm x 3 ( pre-installed ) / 140mm x 2 - Bottom 120mm x 3 - Rear 120mm x 1 ( pre-installed )
- Maximum Number of Fans : 10
Water Cooling Support : Top 360mm / 280mm / 240mm - M/B Side 240mm / 120mm - Rear 120mm
- RGB Hub Sync with M/B : Yes
Max. Graphics Card Length : 400 (mm)
Max. CPU Cooler Height : 180 (mm)
Max. PSU Length : 210 (mm)
| Cooling | |
| Bottom fans diameters supported | 120 |
| Liquid cooling capability | Y |
| Number of bottom fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 3 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120 |
| Side fans diameters supported | 120,140 |
| Side fans installed | 3x 120 mm |
| Side radiator sizes supported | 120,240 |
| Top fans diameters supported | 120,140 |
| Top radiator sizes supported | 240,280,360 |
| Design | |
| Anti-dust filter | Y |
| Cable management | Y |
| Form factor | Midi Tower |
| Full-Height expansion slots | 7 |
| Illumination | Y |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Y |
| Maximum CPU cooler height | 180 |
| Maximum graphics card length | 400 |
| Maximum PSU length | 210 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 10 |
| Number of internal 3.5" bays | 2 |
| On/off button | Y |
| Product colour | Black |
| Reset button | Y |
| RGB control button | Y |
| Side window | Y |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX,Micro ATX,Mini-ITX |
| Tempered glass panel(s) | Y |
| Type | PC |
| Packaging data | |
| Package depth | 487 |
| Package height | 543 |
| Package weight | 8780 |
| Package width | 421 |
| Ports & interfaces | |
| ARGB ports quantity | 1 |
| Audio output | Y |
| Combo headphone/mic port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Power supply | |
| Number of power supply units | 1 |
| Power supply included | N |
| Power supply location | Bottom |
| Power supply shroud | Y |
| Supported power supply form factors | ATX |
| Storage | |
| Supported HDD sizes | 2.5,3.5 |
| Weight & dimensions | |
| Depth | 400 |
| Height | 415 |
| Weight | 6830 |
| Width | 300 |
