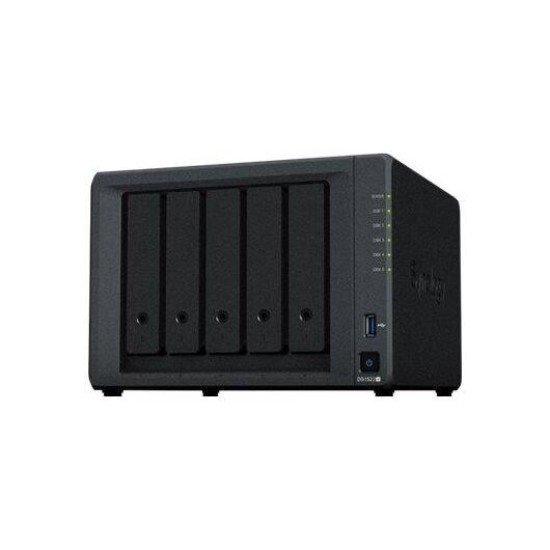

SYNOLOGY NAS DS1522PLUS
- Stock: Out Of Stock
- Model: DS1522PLUS
- SKU: DS1522PLUS
- EAN: DS1522PLUS
Products Sold: 0
Product Views: 96
€0.00
Ex Tax: €0.00
Product Specification
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Max Supported Capacity | 108 TB |
| Installed Devices / Modules Qty | 0 (installed) / 5 (max) |
| Width | 23 cm |
| Depth | 22.3 cm |
| Height | 16.6 cm |
| Weight | 2.7 kg () |
| Built-in Devices | 2 x fans |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x AMD Ryzen Embedded R1600 2.6 GHz |
| Number of Cores | Dual-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.1 GHz |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR4 |
| Features | ECC |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Networking | Networking |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Network / Transport Protocol | PPTP, L2TP, iSCSI, FTP, CIFS, OpenVPN |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Network Services Compatibility | Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Performance | Sequential read: 736 MB/s ¦ Sequential write: 796 MB/s |
| Features | Firewall protection, load balancing, wake on LAN (WOL), High Availability, Access Control List (ACL) support, FTP server, surveillance station, DNS server, cloud backup, VPN Server, ONVIF support, Link Aggregation, B-tree file system (Btrfs), file station, EXT4 file system, SSD trim, iSCSI LUN clone/snapshot, RAID migration, Synology Hybrid RAID, automated failover, wake on WAN (WOW), Let's Encrypt, RADIUS Server, NFS Kerberos authentication, cloud sync, advanced snapshot technology, file and folder-level data restoration, flexible storage quota system, file self-healing, inline compression, SSD read-write cache, shared folder encryption, SMB encryption, login auto block |
| Encryption Algorithm | SSL, TLS, AES-NI |
| Compliant Standards | DLNA CERTIFIED |
| Security DVR | Security DVR |
| IP Cameras Supported | 40 |
| Compression Format | H.264, H.265 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 5 (total) / 5 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x2 |
| Interfaces | 2 x USB 3.2 Gen 1 - Type A ¦ 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x eSATA |
| Miscellaneous | Miscellaneous |
| Cables Included | 2 x network cable |
| Features | Security lock slot (cable lock sold separately), scheduled power on/off |
| Security Slot Type | Kensington security slot |
| Compliant Standards | VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA |
| Included Accessories | Accessory pack |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 52.06 Watt |
| Power Consumption Stand by | 16.71 Watt |
| Power Provided | 120 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | Synology DiskStation Manager |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 22.9 dBA |
